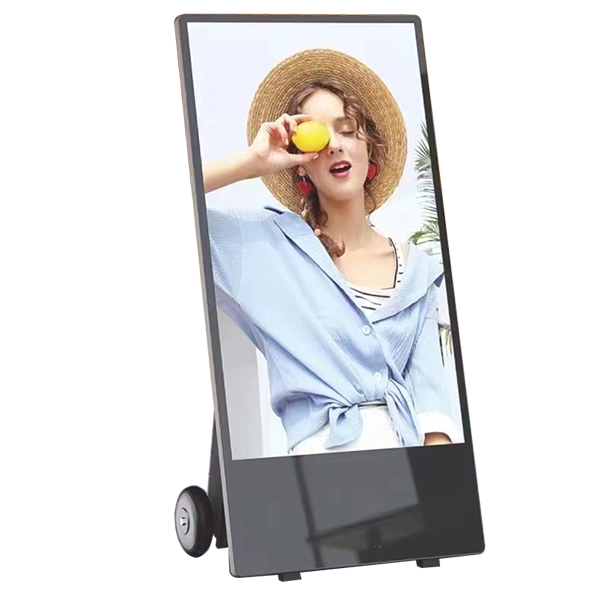

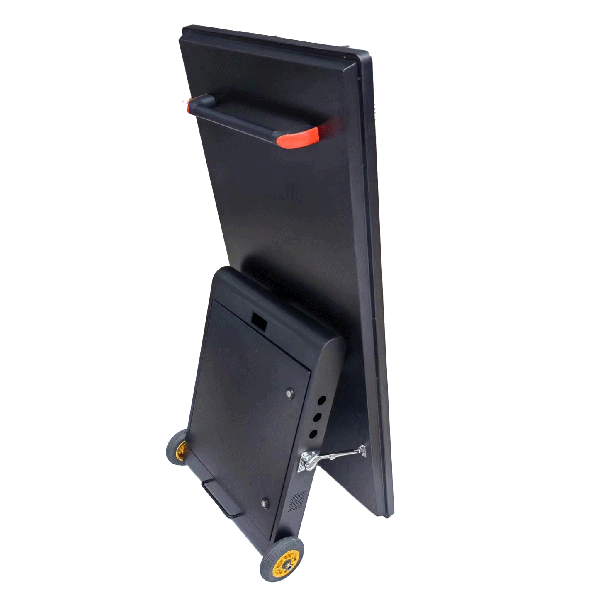

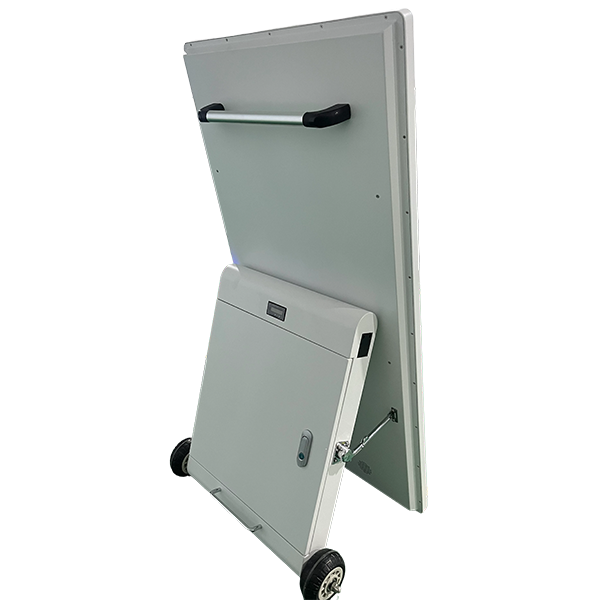

Battery-powered outdoor portable digital LED sign
Model: YW10
Battery-powered outdoor portable digital LED sign
Priced from: $650
MAIN FEATURES
Linux ReadyLinux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.
OutdoorOutdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.
WIFIWiFi is a networking technology that allows devices to communicate without wires.
High brightnessHigh brightness displays are essential for the outdoor applications as well as hight end digital signages.
InternetWeb based internet access is used for the applications developped based on web browse and websites.
Water-proofThe waterproof kiosks are used for out-door or semi outdoor projects for high end applications.
MultitouchMultitouch is the touchscreen with the multi touch points recognition simultaneously.
Projective capacitive touchProjective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side.
-
Battery-powered outdoor portable digital LED sign
-
Configurations
-
