H3 payment and printing kiosk

Model: H3

  • Linux Ready
  • The UPS is the backup power supply for the kiosks especially used for payment transaction.
  • Multitouch is the touchscreen with the multi touch points simultaneously.
  • Projective capacitive touch or projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side of the touchscreen, and makes the touchscreen absolutely isolated from the environment interference.
H3 payment and printing kiosk
H3 payment and printing kiosk

H3 is a multi function payment and printing kiosk

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • touchscreen

    Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.

  • UPS

    The UPS is the backup power supply for the kiosks especially used for payment transaction.

  • Multitouch

    Multitouch is the touchscreen with the multi touch points recognition simultaneously.

  • Projective capacitive touch

    Projective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side.

  • H3 is a multi function payment and printing kiosk.

    OEM/ODM is welcome.




  • Configurations

    • Wall-through cash kiosk with cash acceptor and handset Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      Enclosure ZKTE AW Type of enclosure Wall through durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Thermal Printer ZKTEK GMT532 Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 120mm
      Paper thickness 60 to 120g/m2
      Print Speed 150mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Card Reader CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
      - With shutter(optional)
      Magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
      IC card ISO/IEC 7816 JIS X6303 read/write
      RFID(contactless) card ISO 7816 read/write
      - ISO/IEC 15693(NFC)
      Standards EMV Ver.4.0 compliant for IC and magnetic card
      Interface USB/RS-232
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Bill Acceptor MEI SCL83 Bill validation width 62-85mm(W)
      Validation rate 98% or greater
      Validation speed Approximately 3 seconds to stack
      Note insertion directions Note Insertion - up to 46 notes
      Validation scan scans 100% of both faces of each bill using six wavelengths
      Cassette Up to 1200 street-grade notes(SCL83)
      Bezel Options General
      Escrow One note
      Language protocol EBDS
      Operation temeprature 0-60 Cel
      Operation humidity 5%-95%
      Gross weight(with cashbox) 5.5KG
      Interface RS232
      Power Supply 12V to 24V dc
      Camera ZKTEK PHC1 Camera Type CMOS
      Resolution 2MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      OS Microsoft Windows 7 Ult 32bit Version Windows 7 Ult
      - 32bit
      Handset ZKTEK HS1 Handset type Vandalism-resistance handset with metal cable
      - With fork
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Package ZKTEK Crate Material Plywood crate
      Wrapper Film
      Foam (only corners)
    • H3 passport kiosk with x1225, IDC500, K80, URU4500 and MKT2752 & HS Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      Touchscreen Monitor ZKTEK C191 Touch technology 19 inch projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm;
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Light Transmission 90%~92%
      Thermal Printer CUSTOM K80 Printer Type Direct Themal Printer
      Paper width 80mm
      Paper roll diameter 180mm
      Paper thickness 60 to 120g/m2
      Print Speed 130mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC2.5A
      Interface RS232 / USB / Ethernet
      Document Scanner SYSCAN IDC500 Scanner type Color 24bit
      SDK VC demo
      Scan emulation TWAIN
      Resolution (in color) 400 DPI (dots per inch) with 5 MEGA camera
      Reading Capability ICAO 9303 compliant 2 and 3 line MRZ
      - 1D, 2D bar codes (PDF417, QR, Data matrix)
      - Finger print scanning(optional)
      - IC card reading:(optional)
      Image capturing Speed Color+IR: on average3.5 seconds
      Scanning window 131mm?5.5mm
      Interface USB2.0
      Metal Keyboard ZKTEK MKT2752 Type 64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
      Faceplate: 372*102mm
      Trackball Diameter 38mm
      Lettering Sunk laser legends & characters in high quality ink
      Switch life more than 2 million of operations
      Standards Compatible with CE, RoHS, FCC
      Layout Internet -English(EN04), customizable for all languages
      Interface USB
      Biometric ZKTEK URU4500 Resolution 500dpi@8bit per pixel
      Speed AuthenticationTime<1s
      Processor 400 MHz DSP;FingerPrint Area:14.2*0.4mm
      Enrollment Time 850 msec
      Interface USB/RS232
      Enclosure ZKTEK H Type of material Durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      OS Microsoft Windows 7 Ult 32bit Version Windows 7 Ult
      - 32bit
      Handset ZKTEK HS1 Handset type Vandalism-resistance handset with metal cable
      - With fork
      Camera ZKTEK PHCOV5MP Camera Type CMOS
      Resolution 5MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm

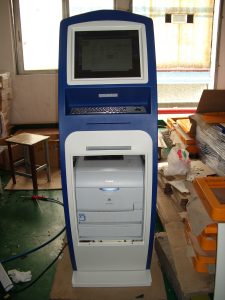

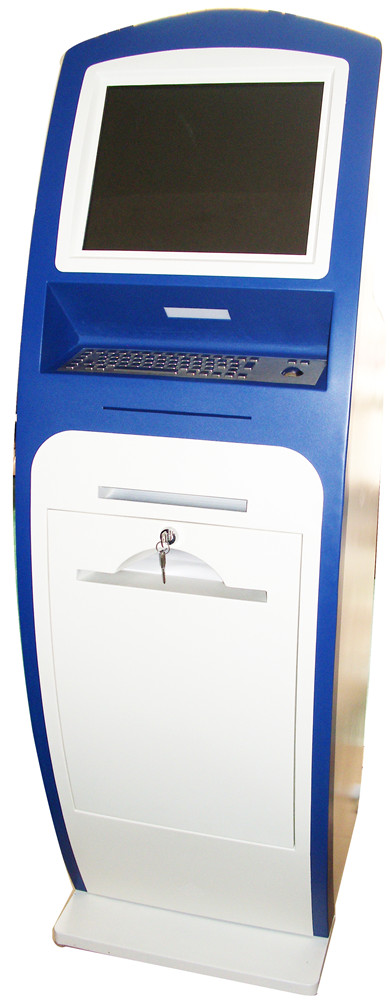

    • H3 A4 printer kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      Touchscreen Monitor ZKTEK C191 Touch technology 19 inch projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm;
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Light Transmission 90%~92%
      Laser Printer HP M401D Printer Type A4 Dual-side Mono black/white laser printer
      Language All kinds of character set optional
      Speed 33ppm
      First Print Out <8s
      Size A4
      Max resolution 1200 x 1200dpi
      Capability 50000 pages per month
      Paper tray storage 1st tray storage:250 sheets; 2nd tray storage: 50
      Memory 128MB
      Dimensions 364.6x368x267.5mm
      Netweight 10.7kg
      Power supply 220V-240V AC
      Interface USB 2.0
      Metal Keyboard ZKTEK MKT2752 Type 64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
      Faceplate: 372*102mm
      Trackball Diameter 38mm
      Lettering Sunk laser legends & characters in high quality ink
      Switch life more than 2 million of operations
      Standards Compatible with CE, RoHS, FCC
      Layout Internet -English(EN04), customizable for all languages
      Interface USB
      Enclosure ZKTEK H Type of material Durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
