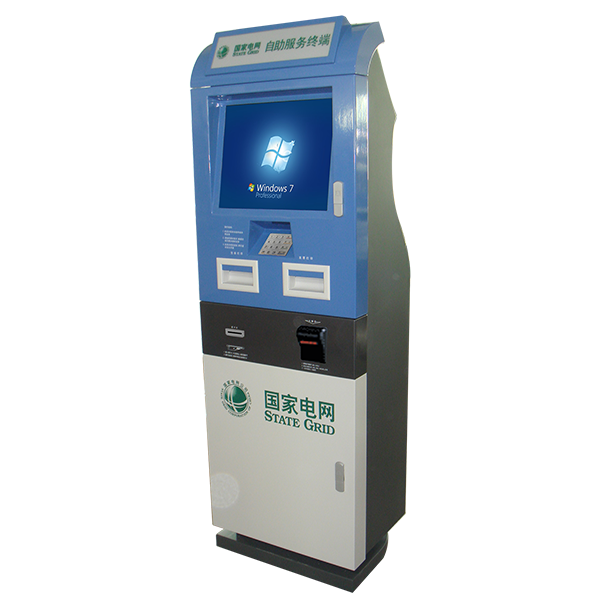

A5 electricity payment collection touchscreen kiosk with bill validator, bank card reader, EPP and invoice printer

Model: A5

  • Cash validation is a very useful function for the kiosks to collect the money for the services.
  • The UPS is the backup power supply for the kiosks especially used for payment transaction.
  • Rugged kiosk is used for the applications which needs high quality kiosks.
A5 electricity payment collection touchscreen kiosk with bill validator, bank card reader, EPP and invoice printer
A5 electricity payment collection touchscreen kiosk with bill validator, bank card reader, EPP and invoice printer

A5 is an electricity payment collection touchscreen kiosk with bill validator, bank card reader, EPP and invoice printer

MAIN FEATURES

  • Cash

    Cash validation is a very useful function for the kiosks to collect the money for the services.

  • UPS

    The UPS is the backup power supply for the kiosks especially used for payment transaction.

  • Rugged kiosk

    Rugged kiosk is used for the applications which needs high quality kiosks.

  • The A5 is an automated self service electricity payment collection kiosk with the invoice printer and the receipt printer as well as the cash acceptor, bank card reader&EPP for collecting the electricity fee. With a sturdy enclosure of high reliability receipt and invoice printer,the credit/debit card reader and EPP combo, A5 is ideal for the self service electricity payment collection.

    By adopting the most up-to-date technology and powerful high performance industrial computer for 24/7 use, The electricity payment collection touch screen kiosk is design to cater the increasing demand of the electricity and utility industry for the bill payment and account inquire. The electricity and utility companies will benefit from the multi-functional ways to quickly and conveniently manage the account and pay the bill with the high reliability kiosk solution in compact and sturdy design at a reasonable cost.

    Now, A5 features the most latest technologies:

    •  The complete clean and smooth front interface with projective capacitive touchscreen monitors(optional)
    •  The state of art design and good finishing of outlook surface
    •  High reliable industrial computer with the latest HASWELL server technology
    •  Embedded high-speed high-reliability CASHCODE cash acceptor
    •  Hybrid motorised 3-in-1 bank card reader
    •  Dot matrix impact invoice printer
    •  Optional SIM socket for cellular radio 4G/LTE connectivity
    •  Optional bulky components such as change giver and A4 laser printer for list printing

    A5 is the accoutable solution for the high foot traffic and high quality service electricity and utility companies in 24/7 work-time. With ZKTEK, you will have the tools and support you need for a successful self service automated bank kiosk.

    OEM/ODM/BRANDING are also welcome.

    Applications:

    • Billing Kiosk
    • Marketing Kiosk
    • Music Download Kiosk
    • Multimedia Kiosk
    • On-Line Banking Kiosk
    • Order Entry Kiosk
    • Bespoken Kiosk



    • Prepaid Kiosk
    • Redemption Kiosk
    • Retail Kiosk
    • Security Kiosk
    • Self-Service Kiosk
    • Ticketing Kiosk
    • Tourism Kiosk



    • Trade Show Kiosk
    • Payment Kiosk
    • Check In Kiosk
    • Custom Kiosks
    • Directory Wayfinder Kiosk
    • Employee Self-Service Kiosk
    • Gaming Kiosk



    • Gift Registry Kiosk
    • HR Kiosk
    • Identification Verification Kiosk
    • Information Kiosk
    • Interactive Kiosk
    • Internet Kiosk
    • Internet Pay For Use Kiosk



    • Kiosk OEM
    • Kiosk ODM



  • Configurations

    • Electricity payment kiosk with cash acceptor Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-4570S CPU Intel i5-4570, quad core 3.2GHz
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Thermal Printer CUSTOM TG2480H Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 180mm
      Paper thickness 60 to 120g/m2
      Print Speed 220mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Dotmatrix Printer ZKTEK P76T Printer type Dotmatrix stylus rinter
      Width 76mm
      Paper roll diameter 160mm
      Print Speed 80mm/s
      Sensors Automatic cutter;out alarm/to be run out alarm,Jam
      Temperature 5-35C
      RH 15%-85% NC
      Reliability MTBF>=10000
      MTTR <=30min
      Compatibility Support IBM and OKI simulation
      Interface LPT,RS232 or USB
      Card Reader CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
      - With shutter(optional)
      Magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
      IC card ISO/IEC 7816 JIS X6303 read/write
      RFID(contactless) card ISO 7816 read/write
      - ISO/IEC 15693(NFC)
      Standards EMV Ver.4.0 compliant for IC and magnetic card
      Interface USB/RS-232
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Camera ZKTEK PHC1 Camera Type CMOS
      Resolution 2MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      OS MS WINDOWS XP Version WINDOWS XP
      Bill Acceptor CASHCODE SM Bill validation type 67 mm or 71 mm wide, 120 to 160 mm length bill validation
      Validation rate 98% or greater on first bill insertion
      Complete transport cycle 1.7 seconds
      Escrow Single bill or barcode ticket
      Update remote download for bill or firmware updates via CCNet protocol
      Bill insertion 4-way
      Barcode ticket insertion 2-way
      Interfaces supported (12V) ccNET, RS232, CCS (Serial, TTL), Pulse, ID-003 (TTL), and MDB
      Interfaces supported (24V) MDB (Single price with adapter)
      - Communication connector (ccNET, CCS, and ID003): 18 pin Part No AMP 102398-7, 102536-7
      Enclosure ZKTEK A Type of enclosure Wall through durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Package ZKTEK Crate Material Plywood crate
      Wrapper Film
      Foam (only corners)
