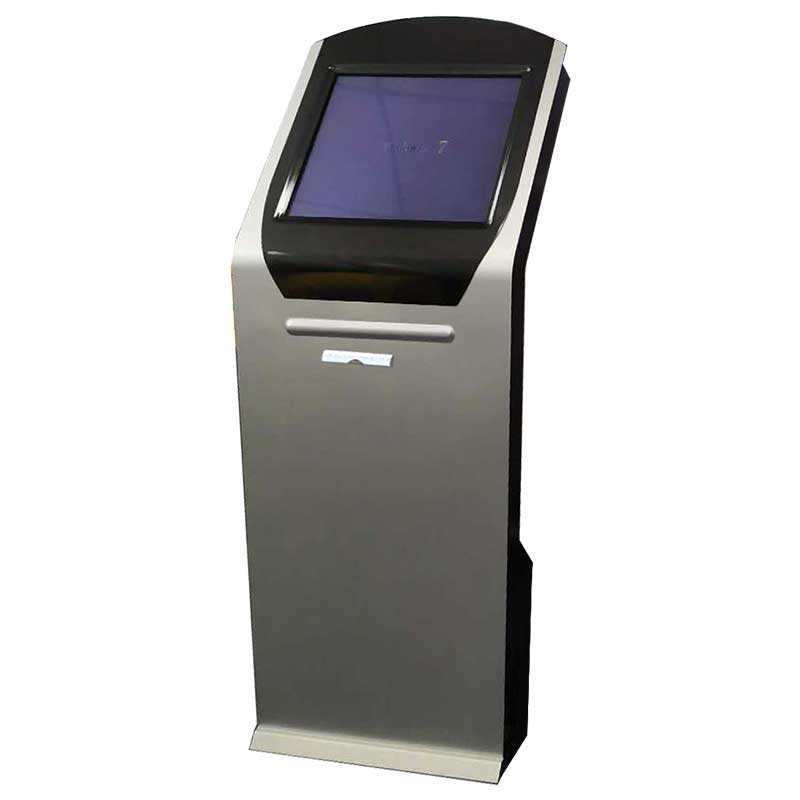

Q1 visitor queue management kiosk

Model: Q1

  • Linux Ready
  • Chip cards/IC cards are used for store the sensitive information of the bank account.
  • EPP are the encrypted PINpads which are used for the protect the PIN entry when the passwords are encrypted.
  • Web based internet access is used for the applications developped based on web browse and websites.
  • Multitouch is the touchscreen with the multi touch points simultaneously.
  • Projective capacitive touch or projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side of the touchscreen, and makes the touchscreen absolutely isolated from the environment interference.
Q1 visitor queue management kiosk
Q1 visitor queue management kiosk

Q1 is a visitor queue management kiosk

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • Chips

    Chip cards/IC cards are used for store the sensitive information of the bank account.

  • EPP

    EPP are the encrypted PIN pads which are used for the protect the PIN entry when the passwords are encrypted before sent into the PC.

  • Internet

    Web based internet access is used for the applications developped based on web browse and websites.

  • Multitouch

    Multitouch is the touchscreen with the multi touch points recognition simultaneously.

  • Projective capacitive touch

    Projective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side.

  • Q1 is a visitor queue management kiosk.

    OEM/ODM is welcome.




  • Configurations

    • Q series Queue kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Thermal Printer ZKTEK GMT532 Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 120mm
      Paper thickness 60 to 120g/m2
      Print Speed 150mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Card Reader ZKTEK RF610 Type Contactless card reader:M1 and RFID
      RFID(contactless) card ISO 14443 A/B read/write
      - ISO/IEC 15693(NFC)
      Interface USB/RS-232
      Enclosure ZKTEK Q Type of enclosure Durable Q series queue kiosk all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
    • Q series Billing kiosk with EPP, CRT310,532, RFID Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Thermal Printer ZKTEK GMT532 Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 120mm
      Paper thickness 60 to 120g/m2
      Print Speed 150mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Card Reader CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
      - With shutter(optional)
      Magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
      IC card ISO/IEC 7816 JIS X6303 read/write
      RFID(contactless) card ISO 7816 read/write
      - ISO/IEC 15693(NFC)
      Standards EMV Ver.4.0 compliant for IC and magnetic card
      Interface USB/RS-232
      Card Reader ZKTEK RF610 Type Contactless card reader:M1 and RFID
      RFID(contactless) card ISO 14443 A/B read/write
      - ISO/IEC 15693(NFC)
      Interface USB/RS-232
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Enclosure ZKTEK Q Type of enclosure Durable Q series queue kiosk all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
    • Q series touchscreen kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Enclosure ZKTEK Q Type of enclosure Durable Q series queue kiosk all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
