ZKTEK provides all kinds of custom OEM/ODM ATM machine,interactive kiosk,information kiosk, touchscreen kiosk, touchscreen monitor, touchscreen computer, box ipc,digital sginages, pos and metal keyboard products

T5 cash, billing, A4 printer and payment kiosk

Model: T5

  • Linux Ready
  • Chip cards/IC cards are used for store the sensitive information of the bank account.
  • EPP are the encrypted PINpads which are used for the protect the PIN entry when the passwords are encrypted.
  • Web based internet access is used for the applications developped based on web browse and websites.
  • Thermal printer is used to provide high speed receipt and other transaction-related slips.
  • Camera, also as PIN hole camera, is used for the survillance that provides the video record of the environment near the kiosks.
  • Cash validation is a very useful function for the kiosks to collect the money for the services.
  • VoIP stands for Voice over Internet Protocol. It is also referred to as IP Telephony or Internet Telephony. It is another way of making phone calls, with the difference of making the calls cheaper or completely free.
  • Rugged phone is used to provide the needed phone service with a metal cable telephone with some kind of anti-vandalism ability.
  • Rugged kiosk is used for the applications which needs high quality kiosks.
  • Privacy film is used to protect the display screen for sensitive information of service.
  • Multitouch is the touchscreen with the multi touch points simultaneously.
  • Projective capacitive touch or projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side of the touchscreen, and makes the touchscreen absolutely isolated from the environment interference.

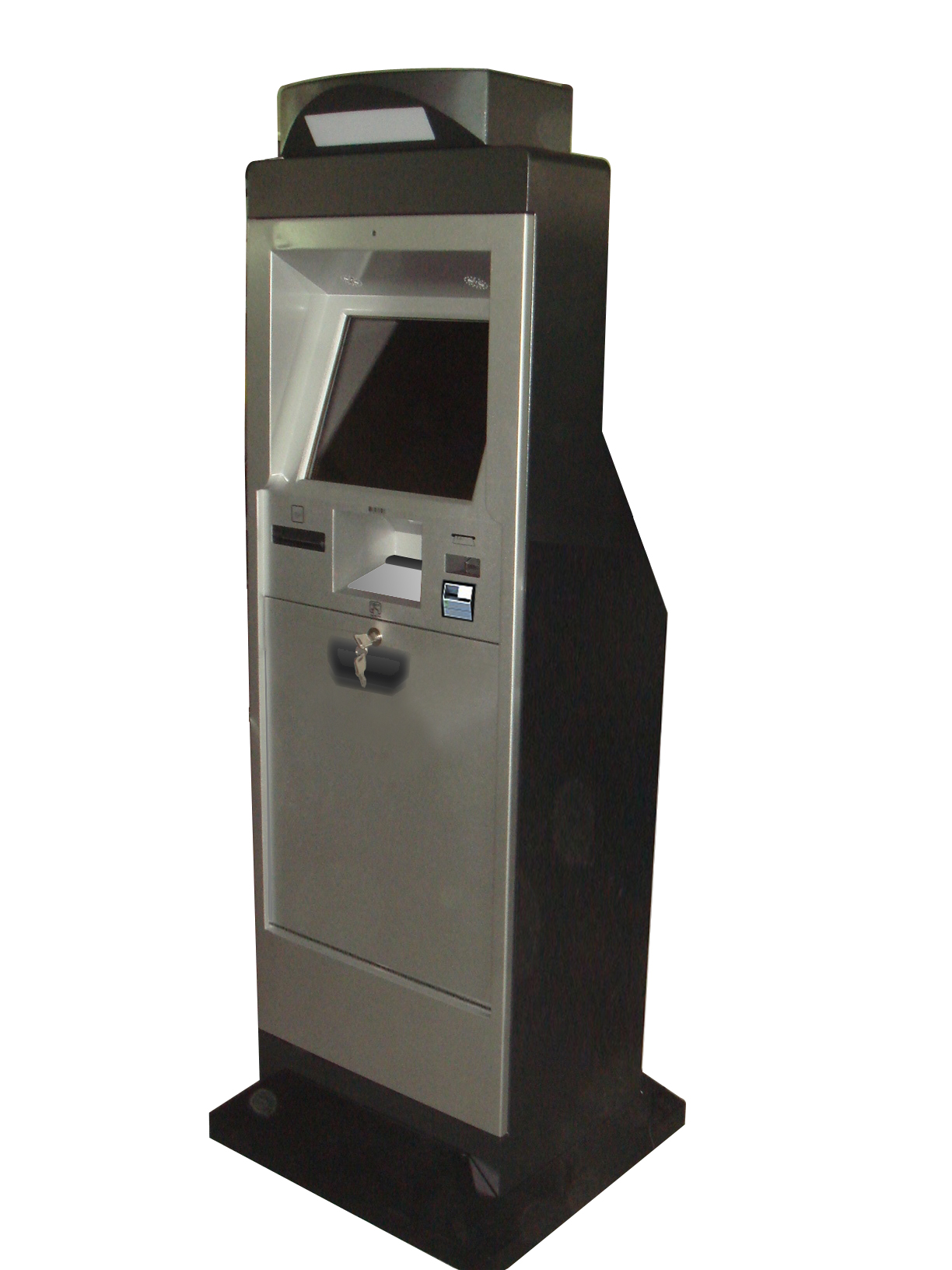

T5 cash, billing, A4 printer and payment kiosk
T5 cash, billing, A4 printer and payment kiosk

T5 is a cash, billing, A4 printer and payment kiosk

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • Chips

    Chip cards/IC cards are used for store the sensitive information of the bank account.

  • EPP

    EPP are the encrypted PIN pads which are used for the protect the PIN entry when the passwords are encrypted before sent into the PC.

  • Internet

    Web based internet access is used for the applications developped based on web browse and websites.

  • Thermal printer

    Thermal printer is used to provide high speed receipt and other transaction-related slips.

  • Camera

    Camera, also as PIN hole camera, is used for the survillance that provides the video record of the environment near the kiosks.

  • touchscreen

    Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.

  • Cash

    Cash validation is a very useful function for the kiosks to collect the money for the services.

  • VoIP

    VoIP stands for Voice over Internet Protocol. It is also referred to as IP Telephony or Internet Telephony. It is another way of making phone calls, with the difference of making the calls ch

  • Rugged phone

    Rugged phone is used to provide the needed phone service with a metal cable telephone with some kind of anti-vandalism ability.

  • Rugged kiosk

    Rugged kiosk is used for the applications which needs high quality kiosks.

  • Privacy film

    Privacy film is used to protect the display screen for sensitive information of service.

  • Multitouch

    Multitouch is the touchscreen with the multi touch points recognition simultaneously.

  • Projective capacitive touch

    Projective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side.

  • T5 is a cash, billing, A4 printer and payment kiosk with handset of VoIP, card reader, EPP, thermal printer, invoice printer, metal keyboard, A4 laser printer and 1D/2D barcode reader.

    OEM/ODM is welcome.




  • Configurations

    • T series billing kiosk with TG2480, CRT310&EPP, P76 Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Thermal Printer CUSTOM TG2480H Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 180mm
      Paper thickness 60 to 120g/m2
      Print Speed 220mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Dotmatrix Printer ZKTEK P76T Printer type Dotmatrix stylus rinter
      Width 76mm
      Paper roll diameter 160mm
      Print Speed 80mm/s
      Sensors Automatic cutter;out alarm/to be run out alarm,Jam
      Temperature 5-35C
      RH 15%-85% NC
      Reliability MTBF>=10000
      MTTR <=30min
      Compatibility Support IBM and OKI simulation
      Interface LPT,RS232 or USB
      Card Reader CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
      - With shutter(optional)
      Magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
      IC card ISO/IEC 7816 JIS X6303 read/write
      RFID(contactless) card ISO 7816 read/write
      - ISO/IEC 15693(NFC)
      Standards EMV Ver.4.0 compliant for IC and magnetic card
      Interface USB/RS-232
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Enclosure ZKTEK T Type of enclosure Durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232
      Camera ZKTEK PHCOV5MP Camera Type CMOS
      Resolution 5MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
    • T series payment kiosk with TG2480, CRT310&EPP, C100 Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      Touchscreen Monitor ZKTEK C191 Touch technology 19 inch projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm;
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Light Transmission 90%~92%
      Thermal Printer CUSTOM TG2480H Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 180mm
      Paper thickness 60 to 120g/m2
      Print Speed 220mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Card Reader CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
      - With shutter(optional)
      Magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
      IC card ISO/IEC 7816 JIS X6303 read/write
      RFID(contactless) card ISO 7816 read/write
      - ISO/IEC 15693(NFC)
      Standards EMV Ver.4.0 compliant for IC and magnetic card
      Interface USB/RS-232
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Bill Acceptor CREATOR C100 Type of validator Multi-width bill validator
      Width of bill 62-83mm multi-width bill validation
      validation rate 96% or greater on first bill insertion
      validation speed Upto 2.5 seconds
      Cassette 600 street-grade notes
      Bezel Options Standard II (83mm or 85mm)
      Protocols ccNET
      Power Supply 10-14VDC
      Interface RS232
      Camera ZKTEK PHC1 Camera Type CMOS
      Resolution 2MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      OS Microsoft Windows 7 Ult 64bit Version Windows 7 Ult
      - 64bit
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
    • T series multifunction kiosk with a lot Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      Touchscreen Monitor ZKTEK C191 Touch technology 19 inch projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm;
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Light Transmission 90%~92%
      Thermal Printer CUSTOM TG2480H Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 180mm
      Paper thickness 60 to 120g/m2
      Print Speed 220mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Laser Printer FUJI XEROX CP305D Printer Type A4 dual-side color/black/white laser printer
      Language All kinds of character set optional
      Speed color/black/white: 23ppm
      First Print Out <15.5s
      Size A4, thickness: 60 - 216gsm
      Max resolution 2400 x 2400dpi(default 600x600 dpi)
      Capability 40000 pages per month
      Paper tray storage 1st tray storage:250 sheets; 2nd tray storage: 250
      Memory 256MB
      Power supply 220V-240V AC
      Interface USB 2.0
      Card Reader CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
      - With shutter(optional)
      Magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
      IC card ISO/IEC 7816 JIS X6303 read/write
      RFID(contactless) card ISO 7816 read/write
      - ISO/IEC 15693(NFC)
      Standards EMV Ver.4.0 compliant for IC and magnetic card
      Interface USB/RS-232
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Barcode Scanner HONEYWELL N5680 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-40 degree Scan angle: 360 degree Movement tolarence
      Minimium size 6.60 mil (PDF 417)
      Interface RS232/USB
      Power supply 5V or over USB
      Brand HONEYWELL
      Movement tolarence 4 inch/second
      Camera ZKTEK PHC1 Camera Type CMOS
      Resolution 2MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Metal Keyboard ZKTEK MKT2752 Type 64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
      Faceplate: 372*102mm
      Trackball Diameter 38mm
      Lettering Sunk laser legends & characters in high quality ink
      Switch life more than 2 million of operations
      Standards Compatible with CE, RoHS, FCC
      Layout Internet -English(EN04), customizable for all languages
      Interface USB
      OS Microsoft Windows 7 Ult 64bit Version Windows 7 Ult
      - 64bit
      Enclosure ZKTEK T Type of enclosure Durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
  • Downloads

  • News

Leave a message

Please write your inquiry here.

*
*


By tick this checkbox, I agreed to receive the information regarding this message from ZKTEK by any means.
By tick this checkbox, I agreed to the Terms of use of ZKTEK.*

CAPTCHA code:
