SJ10 wall mounted stainless steel payment and billing kiosk

Model: SJ10

  • Linux Ready
  • Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.
  • Chip cards/IC cards are used for store the sensitive information of the bank account.
  • EPP are the encrypted PINpads which are used for the protect the PIN entry when the passwords are encrypted.
  • Web based internet access is used for the applications developped based on web browse and websites.
  • Thermal printer is used to provide high speed receipt and other transaction-related slips.
  • Camera, also as PIN hole camera, is used for the survillance that provides the video record of the environment near the kiosks.
  • The waterproof kiosks are used for out-door or semi outdoor projects for high end applications.
  • The UPS is the backup power supply for the kiosks especially used for payment transaction.
  • Rugged kiosk is used for the applications which needs high quality kiosks.
  • Privacy film is used to protect the display screen for sensitive information of service.
  • Multitouch is the touchscreen with the multi touch points simultaneously.
  • Projective capacitive touch or projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side of the touchscreen, and makes the touchscreen absolutely isolated from the environment interference.
SJ10 wall mounted stainless steel payment and billing kiosk

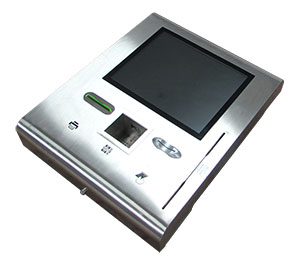

SJ10 wall mounted stainless steel payment and billing kiosk

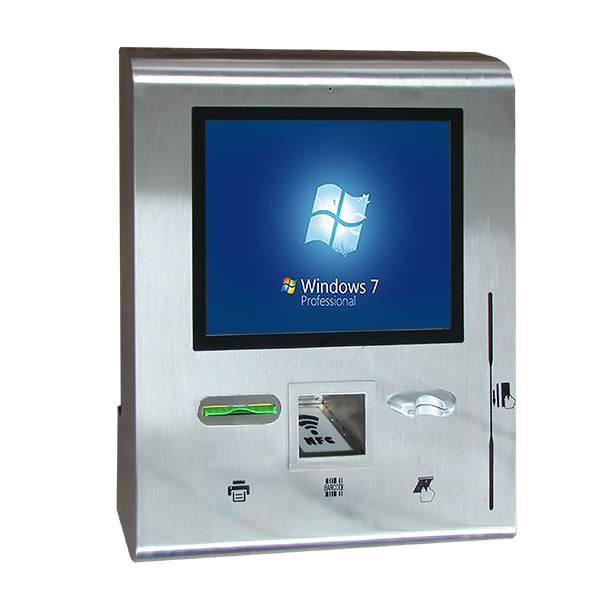

SJ10 is a wall mounted stainless steel payment and billing kiosk

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • Outdoor

    Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.

  • Chips

    Chip cards/IC cards are used for store the sensitive information of the bank account.

  • EPP

    EPP are the encrypted PIN pads which are used for the protect the PIN entry when the passwords are encrypted before sent into the PC.

  • Internet

    Web based internet access is used for the applications developped based on web browse and websites.

  • Thermal printer

    Thermal printer is used to provide high speed receipt and other transaction-related slips.

  • Camera

    Camera, also as PIN hole camera, is used for the survillance that provides the video record of the environment near the kiosks.

  • touchscreen

    Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.

  • Water-proof

    The waterproof kiosks are used for out-door or semi outdoor projects for high end applications.

  • UPS

    The UPS is the backup power supply for the kiosks especially used for payment transaction.

  • Rugged kiosk

    Rugged kiosk is used for the applications which needs high quality kiosks.

  • Privacy film

    Privacy film is used to protect the display screen for sensitive information of service.

  • Multitouch

    Multitouch is the touchscreen with the multi touch points recognition simultaneously.

  • Projective capacitive touch

    Projective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side.

  • SJ10 is a wall mounted stainless steel payment and billing kiosk with projective capacitive thermal printer, 2D barcode scanner, NFC, IC and Magnetic card reader.

    OEM/ODM is welcome.




  • Configurations

    • S series touchscreen kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Barcode Scanner TECLY ZN200 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-65 degree; Scan angle: 360 degree Movement tolarence
      Minimium size 5 mil (PDF 417, UPCA, Code 39)
      Interface RS232/USB
      Power supply 5V or via USB
      Brand TECLY
      Movement tolarence 4 inch/second
      Enclosure ZKTEK S Type of enclosure Durable all stainless steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
    • SJ series billing kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Thermal Printer CUSTOM TG2480H Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 180mm
      Paper thickness 60 to 120g/m2
      Print Speed 220mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Card Reader ZKTEK R100 Reader tracks tr1&2&3 read
      Reader type Manual swipe card reader for magnetic cards
      Magnetic card ISO/IEC 7811 JIS X6301/6302
      Interface USB/RS-232
      Card Reader CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
      - With shutter(optional)
      Magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
      IC card ISO/IEC 7816 JIS X6303 read/write
      RFID(contactless) card ISO 7816 read/write
      - ISO/IEC 15693(NFC)
      Standards EMV Ver.4.0 compliant for IC and magnetic card
      Interface USB/RS-232
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Barcode Scanner HONEYWELL N5680 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-40 degree Scan angle: 360 degree Movement tolarence
      Minimium size 6.60 mil (PDF 417)
      Interface RS232/USB
      Power supply 5V or over USB
      Brand HONEYWELL
      Movement tolarence 4 inch/second
      Enclosure ZKTEK S Type of enclosure Durable all stainless steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Camera ZKTEK PHCOV5MP Camera Type CMOS
      Resolution 5MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
    • SJ series barcode kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Thermal Printer ZKTEK GMT532 Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 120mm
      Paper thickness 60 to 120g/m2
      Print Speed 150mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Card Reader ZKTEK RF610 Type Contactless card reader:M1 and RFID
      RFID(contactless) card ISO 14443 A/B read/write
      - ISO/IEC 15693(NFC)
      Interface USB/RS-232
      Barcode Scanner TECLY ZN200 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-65 degree; Scan angle: 360 degree Movement tolarence
      Minimium size 5 mil (PDF 417, UPCA, Code 39)
      Interface RS232/USB
      Power supply 5V or via USB
      Brand TECLY
      Movement tolarence 4 inch/second
      Enclosure ZKTEK S Type of enclosure Durable all stainless steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Camera ZKTEK PHCOV5MP Camera Type CMOS
      Resolution 5MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
    • SJ series NFC/RFID kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Card Reader ZKTEK RF610 Type Contactless card reader:M1 and RFID
      RFID(contactless) card ISO 14443 A/B read/write
      - ISO/IEC 15693(NFC)
      Interface USB/RS-232
      Barcode Scanner TECLY ZN200 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-65 degree; Scan angle: 360 degree Movement tolarence
      Minimium size 5 mil (PDF 417, UPCA, Code 39)
      Interface RS232/USB
      Power supply 5V or via USB
      Brand TECLY
      Movement tolarence 4 inch/second
      Enclosure ZKTEK S Type of enclosure Durable all stainless steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Camera ZKTEK PHCOV5MP Camera Type CMOS
      Resolution 5MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
  • Downloads

  • News

Leave a message

Please write your inquiry here.

*
*


By tick this checkbox, I agreed to receive the information regarding this message from ZKTEK by any means.
By tick this checkbox, I agreed to the Terms of use of ZKTEK.*

CAPTCHA code:
