AW37 Standalone 17" touchscreen Bitcoin ATM with bundle cash acceptor and dispenser

Model: AW37

  • Linux Ready
  • Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.
  • WIFI
  • High brightness displays are essential for the outdoor applications as well as hight end digital signages.
  • EPP are the encrypted PINpads which are used for the protect the PIN entry when the passwords are encrypted.
  • Cash validation is a very useful function for the kiosks to collect the money for the services.
  • The waterproof kiosks are used for out-door or semi outdoor projects for high end applications.
  • Rugged kiosk is used for the applications which needs high quality kiosks.
  • Privacy film is used to protect the display screen for sensitive information of service.
  • Multitouch is the touchscreen with the multi touch points simultaneously.
  • Projective capacitive touch or projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side of the touchscreen, and makes the touchscreen absolutely isolated from the environment interference.
AW37 Standalone 17" touchscreen Bitcoin ATM with bundle cash acceptor and dispenser
AW37 Standalone 17" touchscreen Bitcoin ATM with bundle cash acceptor and dispenser
AW37 Standalone 17" touchscreen Bitcoin ATM with bundle cash acceptor and dispenser
AW37 Standalone 17" touchscreen Bitcoin ATM with bundle cash acceptor and dispenser
AW37 is a 17" touchscreen Bitcoin ATM with bundle cash acceptor

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • Outdoor

    Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.

  • WIFI

    WiFi is a networking technology that allows devices to communicate without wires.

  • High brightness

    High brightness displays are essential for the outdoor applications as well as hight end digital signages.

  • EPP

    EPP are the encrypted PIN pads which are used for the protect the PIN entry when the passwords are encrypted before sent into the PC.

  • touchscreen

    Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.

  • Cash

    Cash validation is a very useful function for the kiosks to collect the money for the services.

  • Water-proof

    The waterproof kiosks are used for out-door or semi outdoor projects for high end applications.

  • Rugged kiosk

    Rugged kiosk is used for the applications which needs high quality kiosks.

  • Privacy film

    Privacy film is used to protect the display screen for sensitive information of service.

  • Multitouch

    Multitouch is the touchscreen with the multi touch points recognition simultaneously.

  • Projective capacitive touch

    Projective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side.

  • Basic Info.

    • Brand Name:ZKTEK
    • Product Model:AW37
    • Product Size: H:1500mm x W:560mm x D:700mm
    • Product Color: (custom)
    • Product NetWeight: 290 KG
    • Product GrossWeight: 310 KG
    • Product Operation Temperature: 0°C-50°C(below 0°C must use heater)
    • Product Storage Temperature: -20°C-55°C(below 0°C must use heater)
    • Product Certificates: CCC, compliant with UL291 Level 1
    • Product Availability: 2017.7
    • Installation method: Wall-through
    • Model No.: KY8651
    • Min.Order: 5 Set/Sets
    • Means of Transport: Air

    Supply Capacity

    • Production Capacity: 600 sets per month
    • Packing:Carton, Plywood box
    • Delivery Date: 60 days.



    Detailed

    AW37 series ATM is a high performance and reliable ATM product provided by ZKTEK for the deployment of SIM card vending, off-premise ATM, selfservice banks, savings banks, largemalls, stared hotels, large factories and mines, high schools and largeamusement parks etc.



    This series contains two models: AW37E standalone ATM with internal display. These models are utilising the unique design of auti-vandalism, water-proof and dust-proof mechanism to leverage the durability and security of ATMproducts for 7/24 operation standards.



    The module of the ATM is provided by Glory(Delarue), Fujitsu or NCR depending on the requirement of the users.



    Standards of the products: "General regulation of ATM: GB/T18789-2002"; compliant to UL291 level 1 and CEN L provide the drivers forWOSA/XFS CEN.



    Applications

    ü         Bank cash withdraw

    ü         School tuition and scholarship cash withdraw

    ü         Theme park cash withdraw

    ü         Casino counter/coin redemption

    ü         Airport exchange giving

    ü         Mines and factories Salary dispensing

    ü         Car Wash changes giving

    ü         Off-premise ATM for un-attended banks

    Features

    ü          Cost-effective full-function ATM

    ü          Reliable large volume cash dispensing module

    ü          With front and rear accessible safe

    ü          UL291 Level 1 /CEN L compliant

    ü          Drivers for WOSA/XFS CEN

    ü          Slim enclosure, very easy to use in various applications

    ü          Anti-skimming card reader

    ü          Short leadtime:  available for sample in 30 days to shipment

    1.1      technical introduction

    (1)          Complete function and diversified withdraw method

    Accept the transaction request using ISO standard magnetic card orbankbook(optional) to withdraw, transfer,inquiry, change password andother intermedia business which defined by the host computer of thebank.

    (2)          Exquisite appearance, variable configurations and easy installation

    The dimensions of this machine is slim, modern style and sturdy. It issuitable for deployment for off-premise selfserfice banks, savingsbanks, large malls, star hotels, large factories and mines, schools anduniversities etc.

    (3)          Quality guarranty, low-price, and high effecient

    The core module: cash dispenser is provided by Glory, FUJITSU or NCR. It's ahighspeed, high reliability module which is the most popular in seriousATM projects. The large dispensing amount in single transaction providesthe ability to dispense 60 notes in one transaction to make sure thelarge amount withdraw more comfortable.

    Main functions

    Business functionality

    (1)          Bank transaction service

    Include withdraw, change password, balance inquiry, detail inquiry, transfer and intermedia operation.

    (2)          Cash handling function

    The cash dispensing module has the electronical shutter, automaticretract function; utilising the stacked cash dispensing function, withcash escrow and defected notes box. Standard configurations has 1cassettes, and scalable to 3 cassettes( if without internal UPS, thecassettes can be extended to 4 total). 3000 notes per cassette.

    Management function

    (1)          Support bank management service

    Including active manage service and passive manage service. Forexample: CASH REPLENISHMENT, CLEAR CASSETTES, ACCOUNT BALANCING POSTING,PARAMETER DOWNLOAD, KEY MANAGEMENT etc; REMOTE LOGIC POWER-ON, REMOTELOGIC POWER-OFF, STATUS INQUIRY etc.

    (2)          Support all kinds of credit and debit cards

    The cardreader is the motorised hybrid reader, and it can readHI-CO/LO-CO magnetic card, IC card, and PAYPASS contactless card.

    (3)          Support electronic and printed journal

    Provide electronicdaily journal and printed daily journal functions

    (4)          Providing receipt printing and presenting function

    Security Function

    (1)          Providing software and hardware encryption function

    (2)          Providing anti-peak function

    (3)          Providing 4 channel video recording camera(3 internal and 1 external)

    (4)          Providing embedded digital video surveillance system

    (5)          Providing digital HDD video recorder(optional)

    (6)          Providing vibration alarm and body/face mask sensor alarm(optional)

    Other function

    (1)          Providing UPS power(default)

    (2)          Providing heater module(optional)

    (3)          Supporting WOSA CEN/XFS protocol SP drivers

    (4)          Certificated by CCC and Police security standards.





    ATM main technical specifications

    Item

    Parameter Name

    Technical standards

    Remarks

    01

    Installation method

    Standalone



    02

    Maintenance

    Rear maintenance(electronic cabinet open front and rear, the safe open only rear)



    03

    Industrial Host

    Industrial motherboard, with 10 COMs, 1 ethernet, 4 USB2.0, 1 VGA and 1 PS/2 M/K ports

    CPU frequence: > 2.0 GHz, RAM: >1G ; system HDD: > 16G; surveillance HDD: >320G

    4 channels video capture card



    04

    Cash Dispensing Method

    Friction cash dispensing/stacked cash dispensing/max bundle 60 notes per transaction



    05

    Cash Dispensing Protection

    Electronic shutter/stack notes retractable



    06

    Cash Dispensing Speed

    7 notes/s



    07

    Cash Cassettes Capacity

    Standard configuration: 1 cassette, expandable to 6 cassettes. 3000 notes per cassette



    08

    Defected notes box/Escrow box

    Within the first cassette, capacity: 150 notes



    09

    Display module

    15-19 inch color LCD monitor(220 nits)



    10

    EPP Metal keypad

    16 keys stainless anti-vandalism, water-proof, dust-proof steelkeypad; 8 function keys side bar; with DES and 3DES algorithm; withpeak-proof mechanism



    11

    Status change switch

    Running status and maintenance status



    12

    Receipt printer

    80mmwidth thermal printer(paper roll diameter 150mm); with blackmark sensor and icon printer, support English and Chinese charactersetby default with expandable characterset. Support partial/half cut andfull cut



    13

    Journal printer

    76mmwidth dot-matrix impact printer(paper roll diameter 80mm) –support electronic dialy journal. Support English and Chinesecharacterset by default. Support Red and black dual colorprinting(optional)



    14

    Card reader

    Electronic card reader, support ISO standardmagnetic credit anddebit cards, IC credit and debit cards, PAYPASS cards; anti-skimfunction(un-regular bezel and un-regular speed card-draging); supportEMV functions.



    15

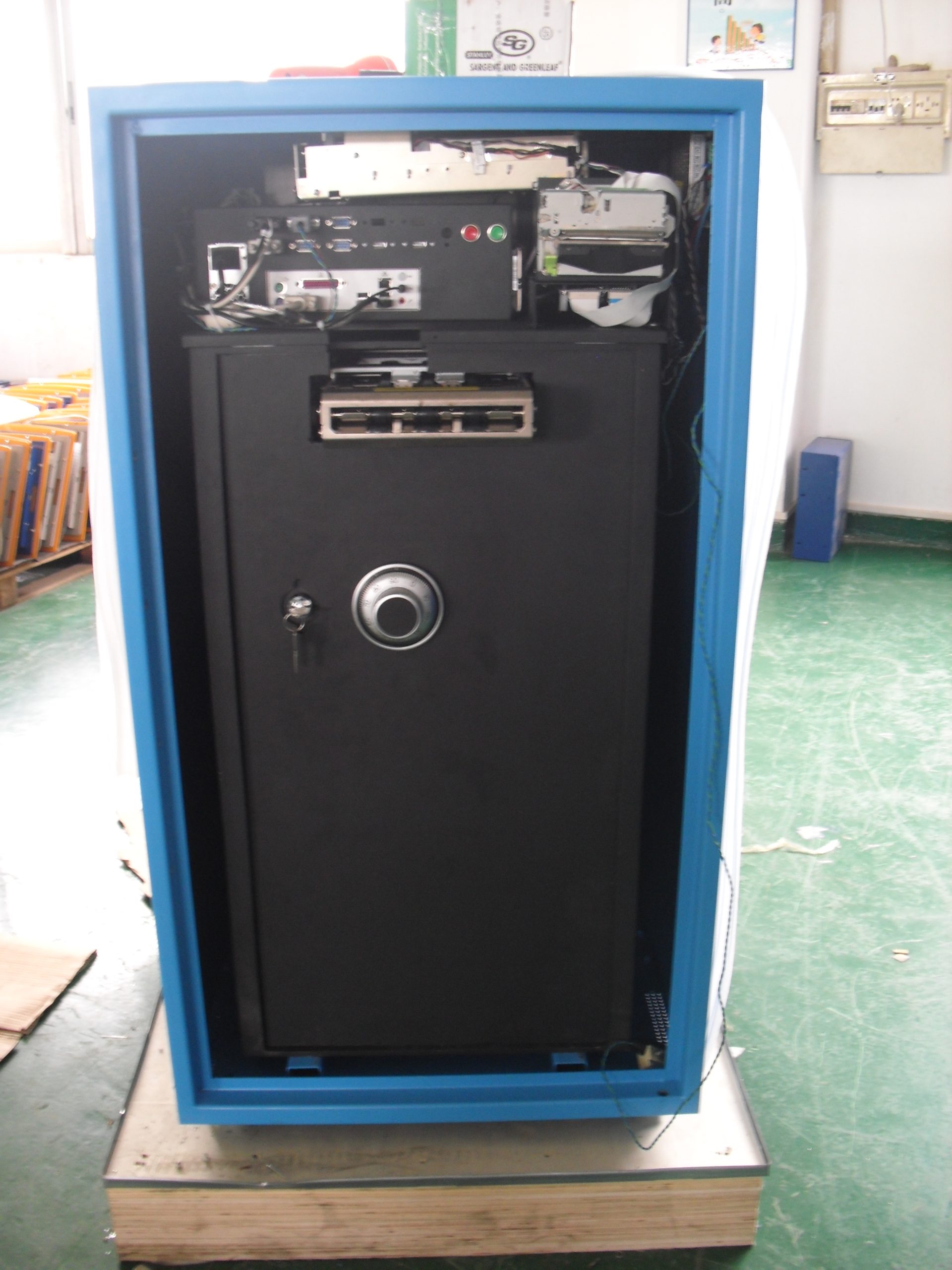

    Safe

    Compliant with UL291 L1 24H standard,with mechanic lock and mechanic password lock



    16

    Advertisement lightbox

    The keypad and operation panel can be lighted in the nights. With ON/OFF timer



    17

    Indicator LED

    Indicator for cash out outlet, card reader outlet, receipt printer outlet;

    Four status of indicators: ON, OFF, Slow-blink and quick blink



    18

    Door status detection

    Detecting the safe, electronic cabinet front/rear door status real-time



    19

    Power input

    AC 180V~240V 50Hz.



    20

    Power management module

    Important modules power-on asynchronously



    21

    Auxiliary components

    Stereo speaker, rear-mount security awareness anti-peak mirror



    22

    Temperature range

    Operation:0°C~50°C(below 0°C must use heater)

    Storage: -20°C~55°C



    23

    RH

    5%~95% (NC)



    24

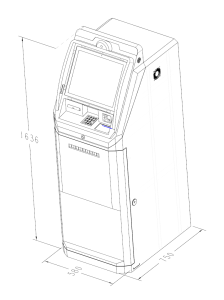

    Outline dimensions

    H:1500mm x W:560mm x D:700mm



    25

    Weight

    Around 350Kg



    26

    Embedded digital videosuiveillance system

    Support real-time HDD monitoring;support online operation.Providing PIN entry area shield function to ensure the security ofinformation; with card number video -in and card inquiry function;supporting at least 4 channel camera input systems; Area field functionto protect the secret information from been recorded



    27

    Digital HDD recorder(DVR)(optional)

    Support digital real-time HDD recorder and playback; supportnetwork operation; support 4 channel recording input; support dynamicinvasion detection, support video camera mask detection and area maskdetection function.

    3 channels internal camera, and 1 channelexternal camera

    28

    Shake alarm and body/face mask sensor(Optional)

    Support shake alarm and body/face mask detection



    29

    Heater(optional)

    300W, max temperature 20°C, support automatic power-on and temperature control



    30

    UPS power supply(optional)

    300/500W, online 15 mins UPS



    31

    Rear maintenance LCD panel

    tbd



    Packaging

    Selling Units: Single item
    Single package size:  170X65X95 cm
    Single gross weight: 310.0 KG
    Package Type: Plywood crate with foam protection wrapped with film
