ZKTEK provides all kinds of custom OEM/ODM ATM machine,interactive kiosk,information kiosk, touchscreen kiosk, touchscreen monitor, touchscreen computer, box ipc,digital sginages, pos and metal keyboard products

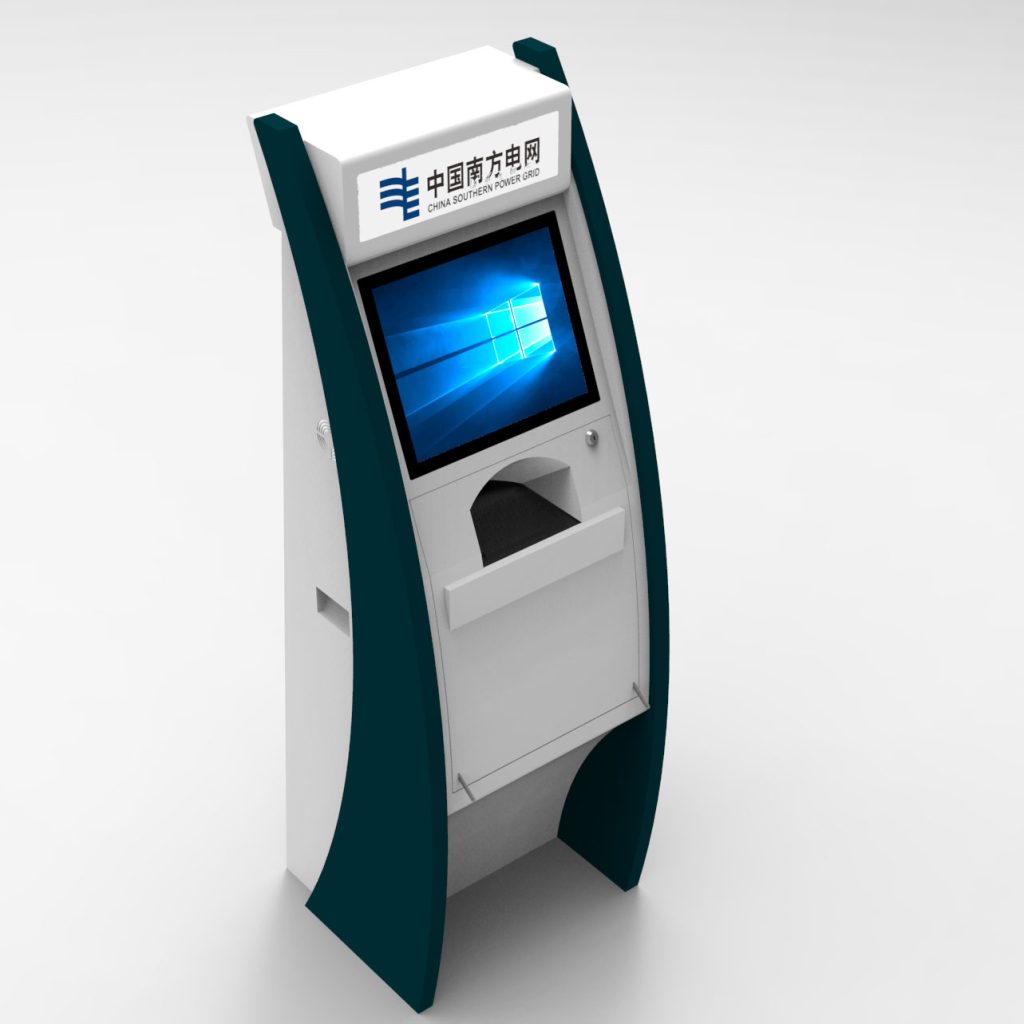

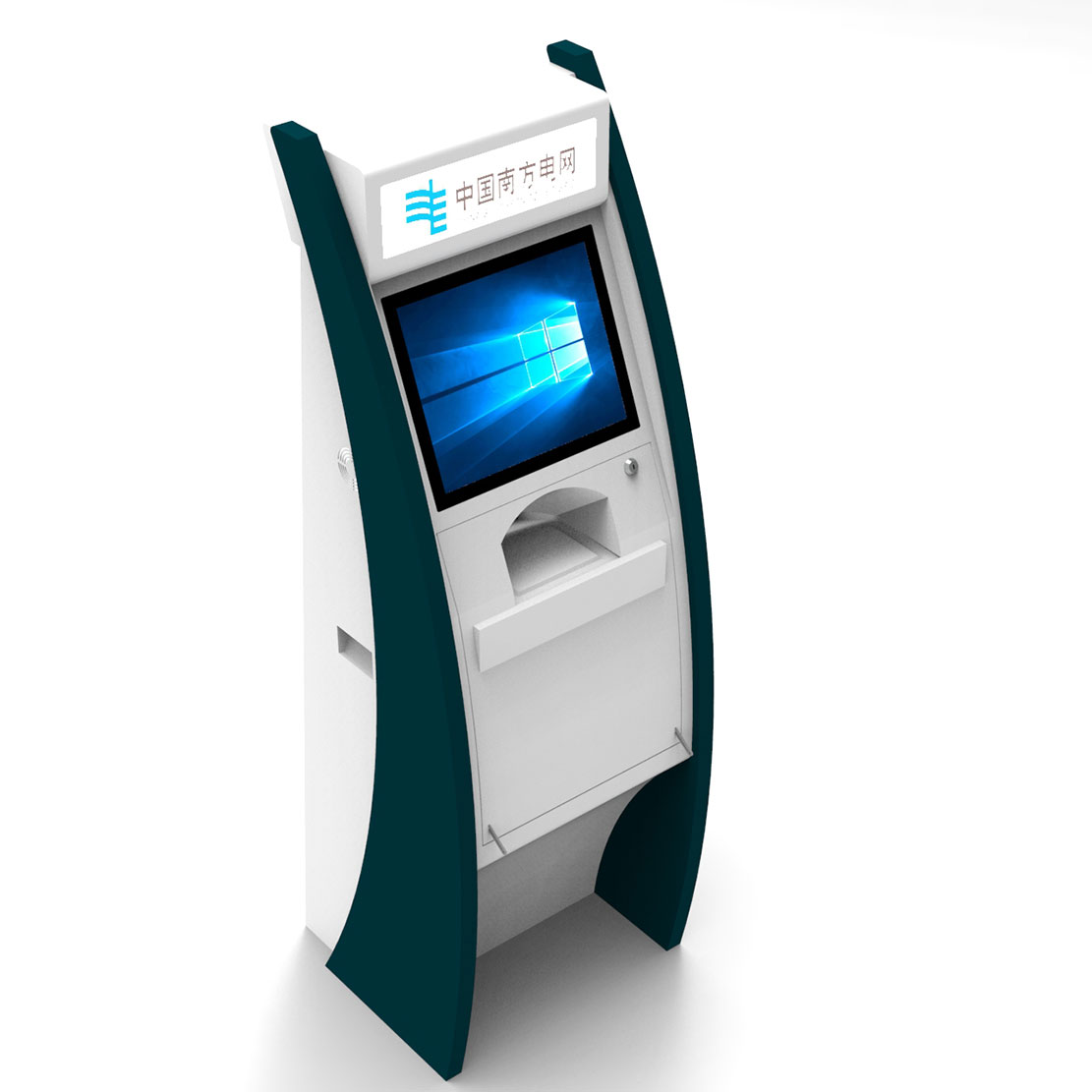

F8 multi touch touch screen kiosk machine with A4 printer and metal keyboard

Model: F8

  • WIFI
  • Web based internet access is used for the applications developped based on web browse and websites.
  • Thermal printer is used to provide high speed receipt and other transaction-related slips.
  • Camera, also as PIN hole camera, is used for the survillance that provides the video record of the environment near the kiosks.
  • Rugged kiosk is used for the applications which needs high quality kiosks.
F8 multi touch touch screen kiosk machine with A4 printer and metal keyboard
F8 multi touch touch screen kiosk machine with A4 printer and metal keyboard

F8 is a general purpose free standing  multi functions touchscreen kiosk for hotel, hospital, airport boarding pass printing, card dispensing and ticket vending etc

MAIN FEATURES

  • WIFI

    WiFi is a networking technology that allows devices to communicate without wires.

  • Internet

    Web based internet access is used for the applications developped based on web browse and websites.

  • Thermal printer

    Thermal printer is used to provide high speed receipt and other transaction-related slips.

  • Camera

    Camera, also as PIN hole camera, is used for the survillance that provides the video record of the environment near the kiosks.

  • touchscreen

    Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.

  • Rugged kiosk

    Rugged kiosk is used for the applications which needs high quality kiosks.

  • The F8 is a free standing capacitive touchscreen kiosk with barcode reader and cash validator etc. With the additional card reader, metal EPP and thermal printer, F8 is capable to handle the cash payment and card payment as well as the barcode authentication for the payment industry and various of billing applications.Other options, such as the RFID(NFC) reader is also available with this model. F8 is ideal for the application needing a lot of features with a sturdy and classic outlines.

    By adopting the most up-to-date technology and powerful high performance industrial computer for 24/7 use, The freestanding touch screen kiosk is design to cater the increasing demand of the multifunctaional kiosks. The business owners will benefit from the multifunction ways to quickly and conveniently manage their business with the kiosks in every day operation in compact and sturdy design at a reasonable cost.

    Now, F8 features the most latest technologies:

    •  The complete clean and smooth front interface with projective capacitive touchscreen monitors(optional)
    •  The state of art design and good finishing of outlook surface
    •  High reliable industrial computer with the latest HASWELL server technology
    •  Embedded high-speed high-reliability cash acceptor(optional)
    •  Hybrid motorised 3-in-1 bank card reader(optional)
    •  Durable high speed thermal printer(optional)
    •  Optional SIM socket for cellular radio 4G/LTE connectivity(optional)
    •  Optional bulky components such as bank pass book printer, change giver and A4 laser printer for list printing

    F8 is the accoutable solution for the high foot traffic and high quality service companies and banks as a decent multi functional kiosk in 24/7 work-time. With ZKTEK, you will have the tools and support you need for a successful self service automated multi functional kiosk.

    OEM/ODM/BRANDING are also welcome.


    Applications:

    • Billing Kiosk
    • Marketing Kiosk
    • Music Download Kiosk
    • Multimedia Kiosk
    • On-Line Banking Kiosk
    • Order Entry Kiosk
    • Bespoken Kiosk



    • Prepaid Kiosk
    • Redemption Kiosk
    • Retail Kiosk
    • Security Kiosk
    • Self-Service Kiosk
    • Ticketing Kiosk
    • Tourism Kiosk



    • Trade Show Kiosk
    • Payment Kiosk
    • Check In Kiosk
    • Custom Kiosks
    • Directory Wayfinder Kiosk
    • Employee Self-Service Kiosk
    • Gaming Kiosk



    • Gift Registry Kiosk
    • HR Kiosk
    • Identification Verification Kiosk
    • Information Kiosk
    • Interactive Kiosk
    • Internet Kiosk
    • Internet Pay For Use Kiosk



    • Kiosk OEM
    • Kiosk ODM



  • Configurations

    • Self service kiosk for banks Specifications

      Name Model Item Parameter
      Dotmatrix Printer ZKTEK P76T Printer type Dotmatrix stylus rinter
      Width 76mm
      Paper roll diameter 160mm
      Print Speed 80mm/s
      Sensors Automatic cutter;out alarm/to be run out alarm,Jam
      Temperature 5-35C
      RH 15%-85% NC
      Reliability MTBF>=10000
      MTTR <=30min
      Compatibility Support IBM and OKI simulation
      Interface LPT,RS232 or USB
      Touchscreen ZKTEK C1710S Type 17 inch SAW touchscreen
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      - antirust, anti-acid, anti-dust
      Thickness 6mm
      Resolution 4096x1096
      Light Transmission 90%-92%
      Surface Hardness Mohs
      Touch force <100g
      Response Time 16ms
      Interface USB
      Dotmatrix Printer NANTIAN PR2 Printer type Dotmatrix bank pass book printer
      Printer head lifespan More than 400,000,000 actuations
      Character set All language character set optional
      Speed >= 460CPS
      Cartrige dot duration 3,000,000 times actuations
      Temperature 5-35C
      RH 15%-85% NC
      Reliability MTBF>=10000
      MTTR <=30min
      Compatibility Support IBM and OKI simulation
      Interface LPT,RS232 or USB
      LCD LG L173L Type 17 inch TFT LCD
      Brightness 300cd/m2
      Contrast 2000:1
      Max(native). resolution 1024*768
      Response Time 6ms
      Dot pitch 0.197
      Interface LVDS,VGA or DVI
      Thermal Printer ZKTEK GMT532 Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 120mm
      Paper thickness 60 to 120g/m2
      Print Speed 150mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Card Reader CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
      - With shutter(optional)
      Magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
      IC card ISO/IEC 7816 JIS X6303 read/write
      RFID(contactless) card ISO 7816 read/write
      - ISO/IEC 15693(NFC)
      Standards EMV Ver.4.0 compliant for IC and magnetic card
      Interface USB/RS-232
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Enclosure ZKTEK A Type of enclosure Wall through durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232
      Camera ZKTEK PHC1 Camera Type CMOS
      Resolution 2MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Package ZKTEK Crate Material Plywood crate
      Wrapper Film
      Foam (only corners)
    • Airport touchscreen kisok with boarding pass printer and laser printer Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      Touchscreen Monitor ZKTEK C191 Touch technology 19 inch projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm;
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Light Transmission 90%~92%
      Thermal Printer ZEBRA TTP2100 Printer Type Themal printer with presenter
      Paper width 80mm
      Paper roll diameter 180mm
      Paper thickness 60 to 250g/m2
      Print Speed 220mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Metal Keyboard ZKTEK MKT2752 Type 64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
      Faceplate: 372*102mm
      Trackball Diameter 38mm
      Lettering Sunk laser legends & characters in high quality ink
      Switch life more than 2 million of operations
      Standards Compatible with CE, RoHS, FCC
      Layout Internet -English(EN04), customizable for all languages
      Interface USB
      OS Microsoft Windows 7 Ult 32bit Version Windows 7 Ult
      - 32bit
      Enclosure ZKTEK F Type of material Durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Laser Printer SAMSUNG ML2160 Printer Type Black/white Laser printer
      Language All kinds of character set optional
      Speed 20ppm
      First Print Out <8.5s
      Size A4
      Max resolution 1200 x 1200dpi
      Capability 10000 pages per month
      1st tray storage 150 sheets
      Memory 8MB
      Dimensions 331 x 215 x 178mm
      Netweight 4.0kg
      Power supply 220V-240V AC
      Interface USB 2.0
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232
      Camera ZKTEK PHCOV5MP Camera Type CMOS
      Resolution 5MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Package ZKTEK Crate Material Plywood crate
      Wrapper Film
      Foam (only corners)
    • hospital kiosk with laser printer and metal keyboard Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      Touchscreen Monitor ZKTEK C191 Touch technology 19 inch projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm;
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Light Transmission 90%~92%
      Metal Keyboard ZKTEK MKT2752 Type 64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
      Faceplate: 372*102mm
      Trackball Diameter 38mm
      Lettering Sunk laser legends & characters in high quality ink
      Switch life more than 2 million of operations
      Standards Compatible with CE, RoHS, FCC
      Layout Internet -English(EN04), customizable for all languages
      Interface USB
      Enclosure ZKTEK F Type of material Durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Laser Printer SAMSUNG ML2160 Printer Type Black/white Laser printer
      Language All kinds of character set optional
      Speed 20ppm
      First Print Out <8.5s
      Size A4
      Max resolution 1200 x 1200dpi
      Capability 10000 pages per month
      1st tray storage 150 sheets
      Memory 8MB
      Dimensions 331 x 215 x 178mm
      Netweight 4.0kg
      Power supply 220V-240V AC
      Interface USB 2.0
      Camera ZKTEK PHC1 Camera Type CMOS
      Resolution 2MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Package ZKTEK Crate Material Plywood crate
      Wrapper Film
      Foam (only corners)
  • Downloads

  • News

Leave a message

Please write your inquiry here.

*
*


By tick this checkbox, I agreed to receive the information regarding this message from ZKTEK by any means.
By tick this checkbox, I agreed to the Terms of use of ZKTEK.*

CAPTCHA code:
