ZKTEK provides all kinds of custom OEM/ODM ATM machine,interactive kiosk,information kiosk, touchscreen kiosk, touchscreen monitor, touchscreen computer, box ipc,digital sginages, pos and metal keyboard products

SJ4 stainless steel wall mounted kiosk

Model: SJ4

  • Linux Ready
  • Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.
  • Handicapped kiosk are specially designed for the handicapped person.
  • Rugged kiosk is used for the applications which needs high quality kiosks.
  • Multitouch is the touchscreen with the multi touch points simultaneously.
  • Projective capacitive touch or projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side of the touchscreen, and makes the touchscreen absolutely isolated from the environment interference.
SJ4 stainless steel wall mounted kiosk
SJ4 stainless steel wall mounted kiosk

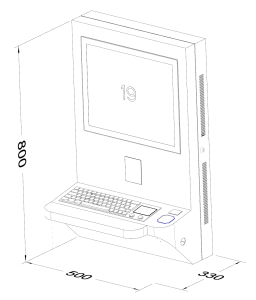

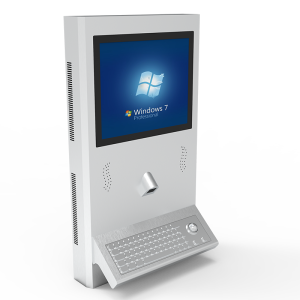

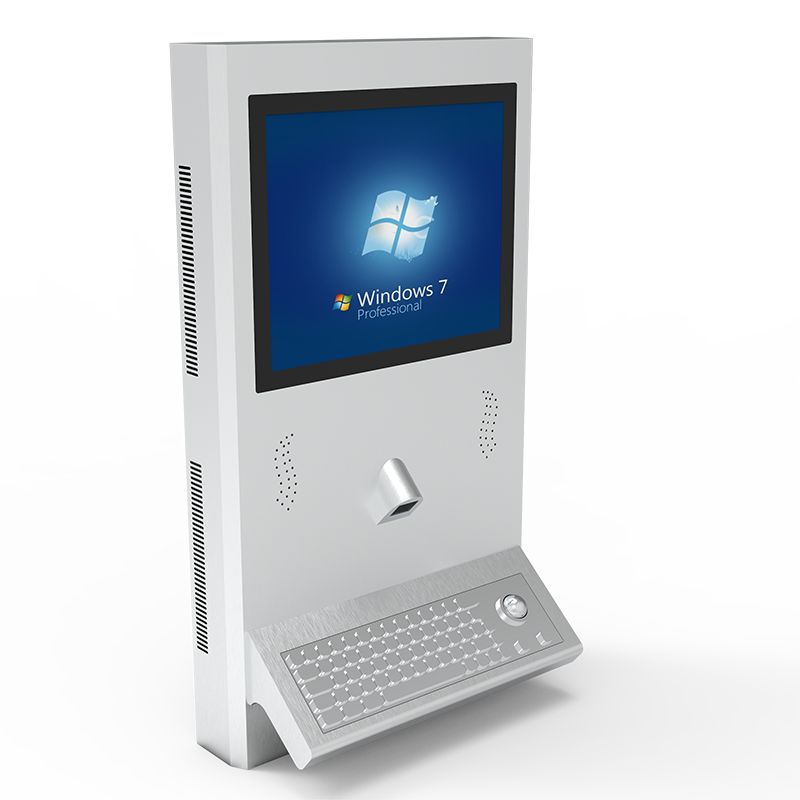

SJ4 is a stainless steel wall mounted kiosk

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • Outdoor

    Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.

  • Handicapped

    Handicapped kiosk are specially designed for the handicapped person.

  • Rugged kiosk

    Rugged kiosk is used for the applications which needs high quality kiosks.

  • Multitouch

    Multitouch is the touchscreen with the multi touch points recognition simultaneously.

  • Projective capacitive touch

    Projective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side.

  • SJ4 is a stainless steel wall mounted kiosk with metal keyboard and biometric reader.

    OEM/OEM is welcome.




  • Configurations

    • S series touchscreen kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Barcode Scanner TECLY ZN200 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-65 degree; Scan angle: 360 degree Movement tolarence
      Minimium size 5 mil (PDF 417, UPCA, Code 39)
      Interface RS232/USB
      Power supply 5V or via USB
      Brand TECLY
      Movement tolarence 4 inch/second
      Enclosure ZKTEK S Type of enclosure Durable all stainless steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
    • SJ series NFC/RFID kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Card Reader ZKTEK RF610 Type Contactless card reader:M1 and RFID
      RFID(contactless) card ISO 14443 A/B read/write
      - ISO/IEC 15693(NFC)
      Interface USB/RS-232
      Barcode Scanner TECLY ZN200 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-65 degree; Scan angle: 360 degree Movement tolarence
      Minimium size 5 mil (PDF 417, UPCA, Code 39)
      Interface RS232/USB
      Power supply 5V or via USB
      Brand TECLY
      Movement tolarence 4 inch/second
      Enclosure ZKTEK S Type of enclosure Durable all stainless steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Camera ZKTEK PHCOV5MP Camera Type CMOS
      Resolution 5MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
    • SJ series metal keyboard kiosk with biometric Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C191 Touch technology 19 inch projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm;
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Light Transmission 90%~92%
      Metal Keyboard ZKTEK MKT2752 Type 64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
      Faceplate: 372*102mm
      Trackball Diameter 38mm
      Lettering Sunk laser legends & characters in high quality ink
      Switch life more than 2 million of operations
      Standards Compatible with CE, RoHS, FCC
      Layout Internet -English(EN04), customizable for all languages
      Interface USB
      Biometric ZKTEK URU4500 Resolution 500dpi@8bit per pixel
      Speed AuthenticationTime<1s
      Processor 400 MHz DSP;FingerPrint Area:14.2*0.4mm
      Enrollment Time 850 msec
      Interface USB/RS232
      Enclosure ZKTEK S Type of enclosure Durable all stainless steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
