PRODUCTS

ZKTEK provides all kinds of custom OEM/ODM ATM machine,interactive kiosk,information kiosk, touchscreen kiosk, touchscreen monitor, touchscreen computer, box ipc,digital sginages, pos and metal keyboard products

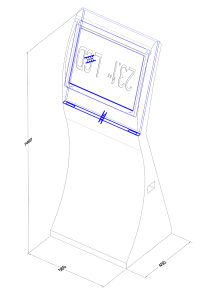

S2 stainless steel touchscreen kiosk

Model: S2

  • Linux Ready
  • Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.
  • RFID
  • The waterproof kiosks are used for out-door or semi outdoor projects for high end applications.
S2 stainless steel touchscreen kiosk
S2 stainless steel touchscreen kiosk

S2 stainless steel touchscreen kiosk

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • Outdoor

    Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.

  • RFID

    WHAT IS RFID? RFID stands for Radio Frequency IDentification, a technology that uses tiny computer chips smaller than a normal size bank card.

  • touchscreen

    Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.

  • Water-proof

    The waterproof kiosks are used for out-door or semi outdoor projects for high end applications.

  • S2 is a stainless steel touchscreen kiosk.

    OEM/ODM is welcome.




  • Configurations

    • S series touchscreen kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C171 Touch technology 17" projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm; Resolution: 4096x 096; Light Transmission:90%~92%
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Barcode Scanner TECLY ZN200 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-65 degree; Scan angle: 360 degree Movement tolarence
      Minimium size 5 mil (PDF 417, UPCA, Code 39)
      Interface RS232/USB
      Power supply 5V or via USB
      Brand TECLY
      Movement tolarence 4 inch/second
      Enclosure ZKTEK S Type of enclosure Durable all stainless steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
    • SJ series metal keyboard kiosk with biometric Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-J1900 CPU Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
      Video core Integrated Intel HD graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5″ hard driver)
      Touchscreen Monitor ZKTEK C191 Touch technology 19 inch projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm;
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Light Transmission 90%~92%
      Metal Keyboard ZKTEK MKT2752 Type 64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
      Faceplate: 372*102mm
      Trackball Diameter 38mm
      Lettering Sunk laser legends & characters in high quality ink
      Switch life more than 2 million of operations
      Standards Compatible with CE, RoHS, FCC
      Layout Internet -English(EN04), customizable for all languages
      Interface USB
      Biometric ZKTEK URU4500 Resolution 500dpi@8bit per pixel
      Speed AuthenticationTime<1s
      Processor 400 MHz DSP;FingerPrint Area:14.2*0.4mm
      Enrollment Time 850 msec
      Interface USB/RS232
      Enclosure ZKTEK S Type of enclosure Durable all stainless steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
